Quality and Innovation at the Core
Every ATUM motor is a testament to our
committment to quality, innovation and sustanability. Learn
about our manufacturing process, quality checks, and the technology that sets us a part
ARAI APPROVED
ip67 compliant

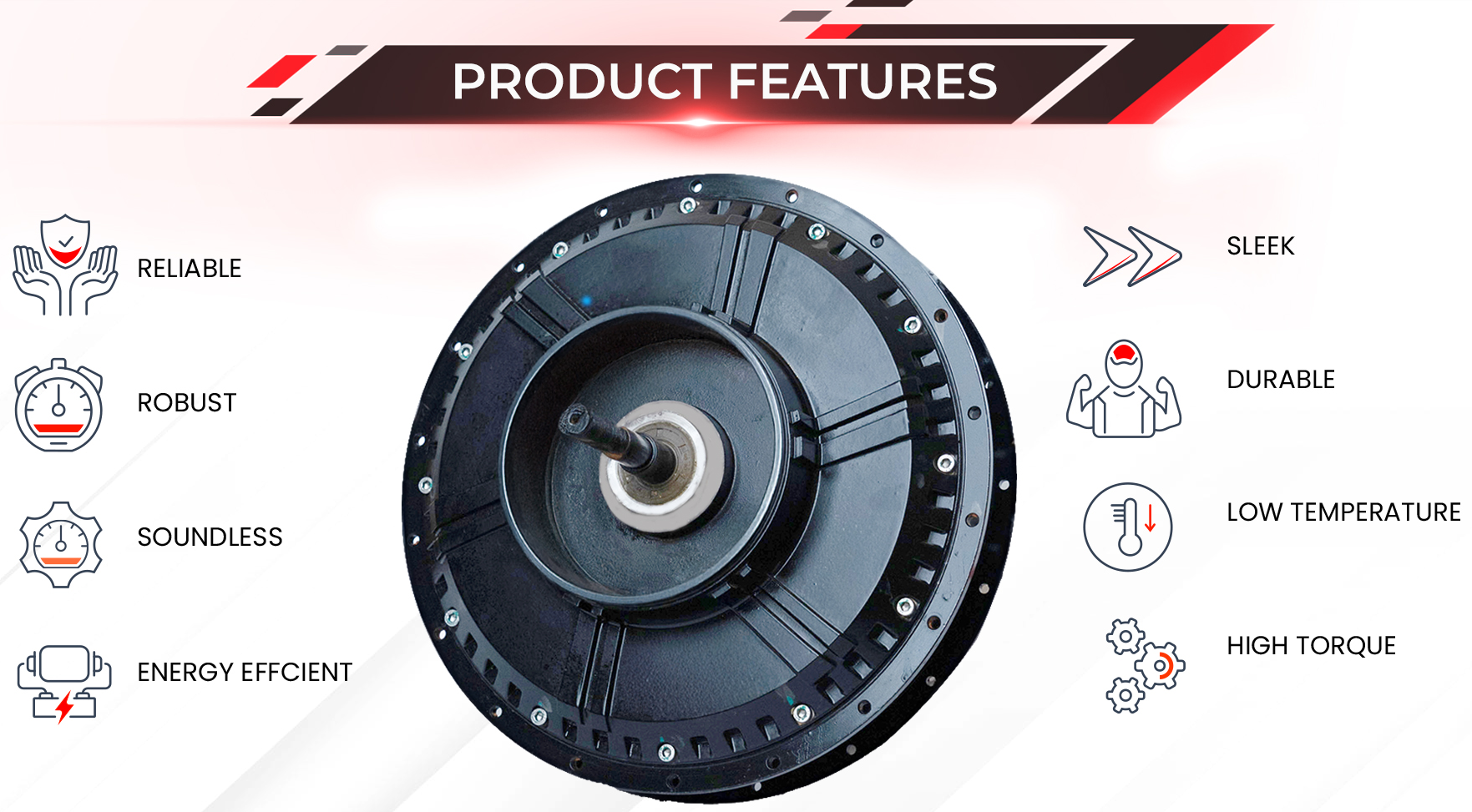

Innovative Motor Solutions
Discover the blend of advanced technology and environmental
responsibility in each of our products
The Game Changer
Offering Unparalleled efficiency and durability
Eco-Friendly and Powerful
Minimal environmental impact without compromising on performance
Speed and Safety
Fast-pickup capabilities without sacrifising motor life
Long-Lasting Efficiency
Minimal power losses
Experience with ATUM Motor
Experience unparalleled performance with our state of the art motor,
engineered to power your journey towards a sustainable future.
Motor Specifications 1.5KW
| Parameter | Unit | Value |
|---|---|---|
| Operating Voltage | V | 60 |
| Rated Current | Amps | 25 |
| Rotor Configuration | Outer Rotor - NdfeB Magnets | |
| Speed Range for Motor | RPM | 800 |
| Motor Rated Speed | RPM | 580 |
| Peak Motor Output Torque | Nm | 110-120 |
| Continuous Motor Output Torque | Nm | 25 |
| Peak Power | Kw | 3 |
| Continuous Power | Kw | 1.5 |
| Maximum Efficiency | % | >85 |
| Cooling | - | Passive |
| IP Rating | - | 67 |
Motor Specifications 3KW
| Parameter | Unit | Value |
|---|---|---|
| Operating Voltage | V | 60 |
| Rated Current | Amps | 60 |
| Rotor Configuration | Outer Rotor - NdfeB Magnets | |
| Speed Range for Motor | RPM | 800 |
| Motor Rated Speed | RPM | 580 |
| Peak Motor Output Torque | Nm | 140 |
| Continuous Motor Output Torque | Nm | 60 |
| Peak Power | Kw | 3.5 |
| Continuous Power | Kw | 3 |
| Maximum Efficiency | % | >85 |
| Cooling | - | Passive |
| IP Rating | - | 67 |
Controller Specifications 1.5KW
| Parameter | Value |
|---|---|
| Motor Type (BLDS/PMSM) | BLDC |
| Pole Pairs | 28 |
| Power (Rated/Peak) | 1.5/3.0KW |
| Peak Current | 60A |
| Max.No Load RPM | 800 |
| U-V-W Setting | Y-G-B |
| Position Sensor Type | Hall |
| Position Sensor Sequence | Y-G-B |
| IP | 56 |
Controller Specifications 3KW
| Parameter | Value |
|---|---|
| Motor Type (BLDS/PMSM) | BLDC |
| Pole Pairs | 28 |
| Power (Rated/Peak) | 3.0/3.5 KW |
| Peak Current | 150A |
| Max.No Load RPM | 800 |
| U-V-W Setting | Y-G-B |
| Position Sensor Type | Hall |
| Position Sensor Sequence | Y-G-B |
| IP | 56 |
